CNLINKO M20 Male Female Electrical 220V 500V Plug and Socket 12 Pin Wire Connector Waterproof Power signal Connector

Name: CNLINKO M20 Male Female Electrical 220V 500V Plug and Socket 12 Pin Wire Connector Waterproof Power signal Connector
Brand: Cnlinko
Price: 6.54 USD

Wholesale CNLINKO M20 Male Female Electrical 220V 500V Plug and Socket 12 Pin Wire Connector Waterproof Power signal Connector from china suppliers

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : DH-20-C12PE-03-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : US$6.54-7.63

Type : Industrial

Application : Signal

Gender : male and female, Female +male

Pin : 12pin

Current rating(A) : 5A

Warranty period : 1 Year

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : plug/unplug

Operating voltage : 400V

Working temperature : -40℃-80℃

Contact Now

CNLINKO M20 Male female electrical 220V 500V Plug and socket 12 Pin wire connector waterproof power signal connector

Product Description

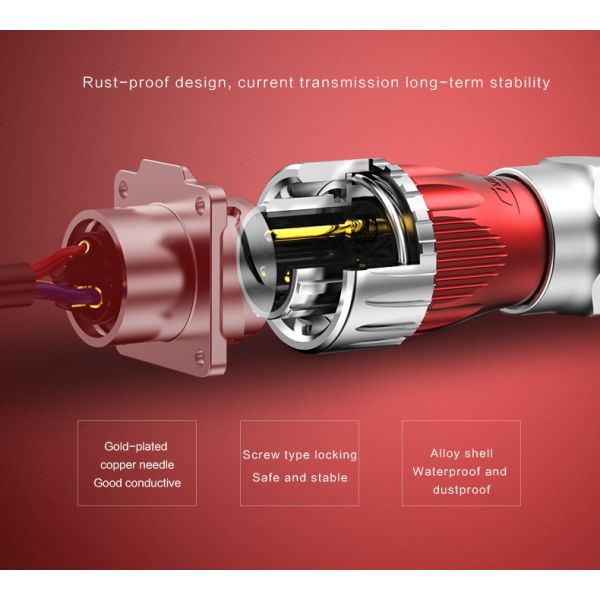

The use of alloy external protective materials effectively reduces electromagnetic and signal RF interference generated by external high currents.
High-standard three-point screw lock.
Optional shell color to meet different environmental requirements.
Optional metal and silicone dust cover for different application requirements.
2-7PIN power supply, 9-12PIN signal is optional.
Rated current: 5A/12A/20A rms.
The product is connected to IP68 protection.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	Φ1.0×12
Current rating(A)	5A
Operating voltage(AC.V.rms)	400V
Withstand voltage(AC.V)1min	1500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
