110V electrical Plug Socket Waterproof Connector Power Cord 3 Pin Metal Screw Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Model Number : YW-20-C03PE-03-001

Place of Origin : Guangdong, China

Certification : CUL,CE,ROHS,CCC,ISO9001

MOQ : 10

Price : US$6.20-7.20

Type : BGA

Brand : Cnlinko

Packaging : 10pcs in a box

Description : YW20 3Pin connectors

Produce type : 3 pin power connector

Current rating(A) : 20A

Protection level : IP67/IP65

Hardware Matel : Zinc Alloy (pearl hard chromium)

Assembly : Solder

Operating voltage : 500V

Contact pin : Copper alloy(gold-plated)

Application : Power

Gender : male and female

Contact Now

Product Description

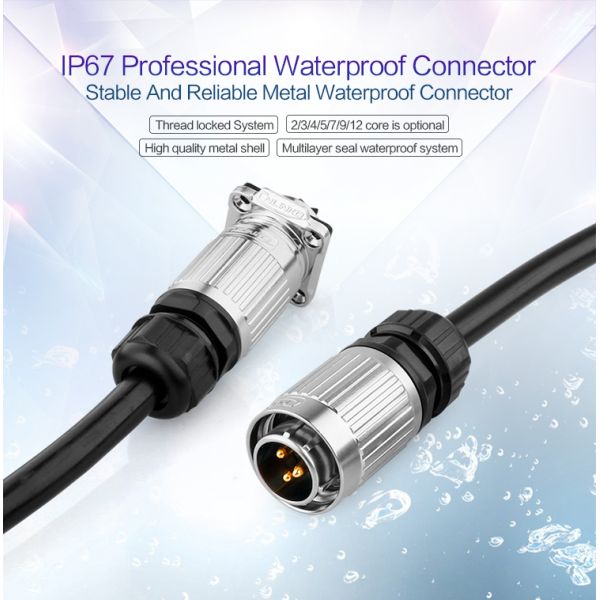

YW-20 series electrical connectors IP65/IP67

all zinc alloy shell, intact electromagnetic and radio frequency interference protection, while can adapt the demands of top-grade products

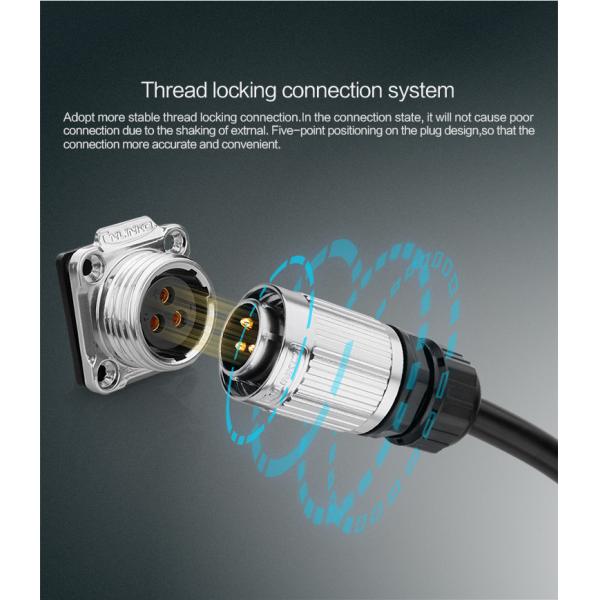

Outer screw locking device, solid and safety

16MM and 20MM optional mounting dimensions

quickly and easy nut locking system design

Hanging dust cover design avoid matters; high safe performance, easy to operate

2-12pins optional

5-20A rms rated current

Slip-resistant outer circle.

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15m2 ~ 0.2mm2 /14~12AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	1000V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics

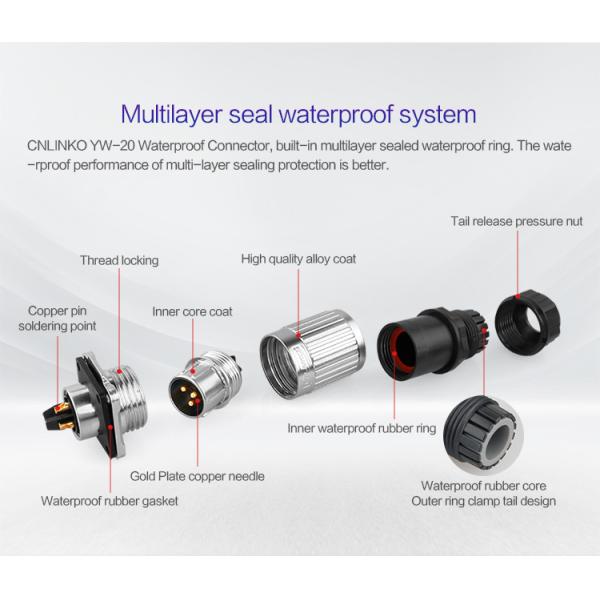

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

110V electrical Plug Socket Waterproof Connector Power Cord 3 Pin Metal Screw Connector Images
